Mechanical Information

There are two versions of the Zinc-V, the Zinc-V and the newer Zinc-V+. These units may be differentiated by the text on the device. All purchases made after Jan 1, 2026 are the Zinc-V+

Zinc-V +

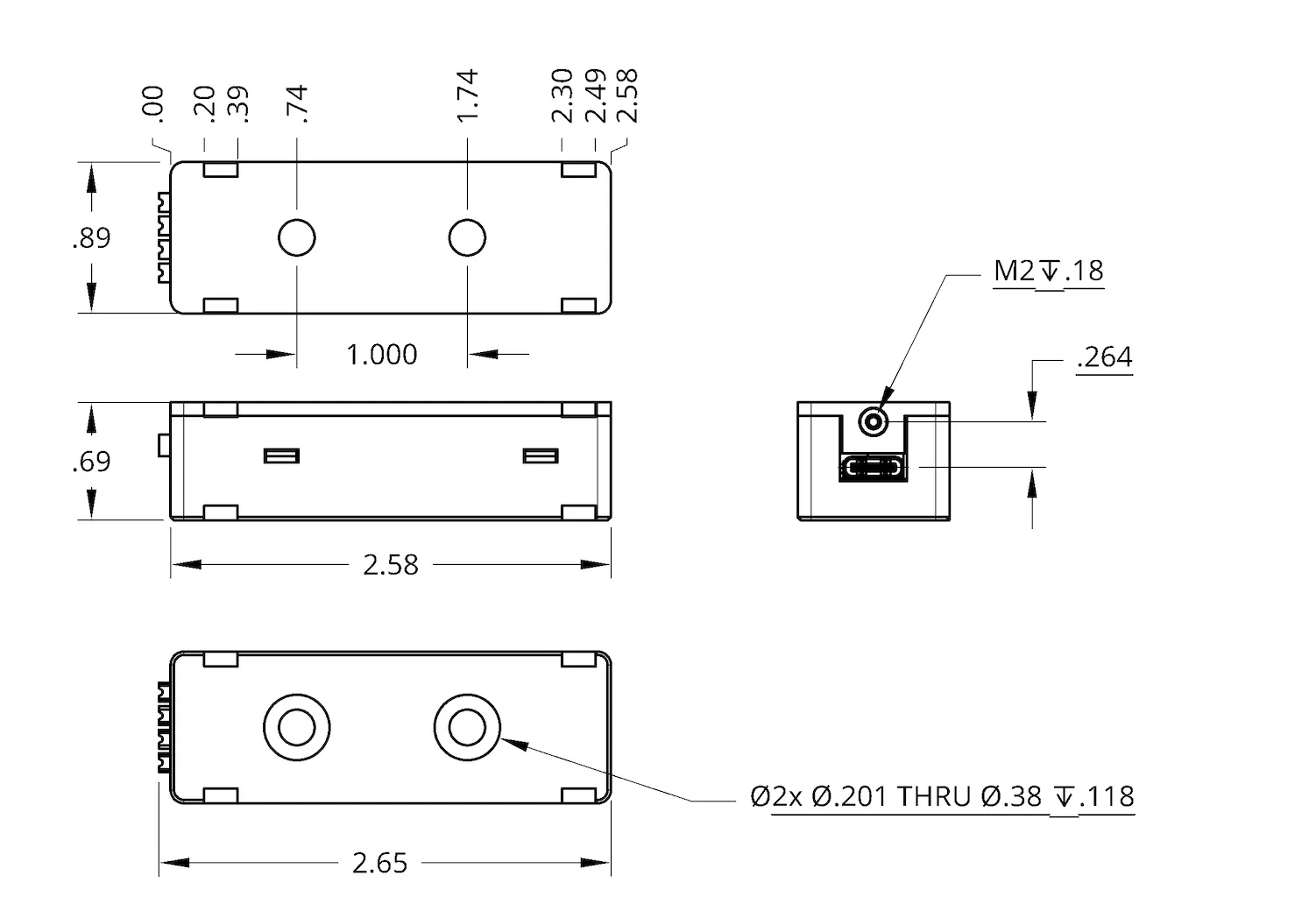

The Zinc-V+ PCBA measures approximately 2.4 x 0.71 x 0.47” (L x W x H). The cased Zinc-V+ measures approximately 2.58 x 0.89 x 0.69” (L x W x H). A simplified drawing of the cased unit is shown below.

Zinc-V

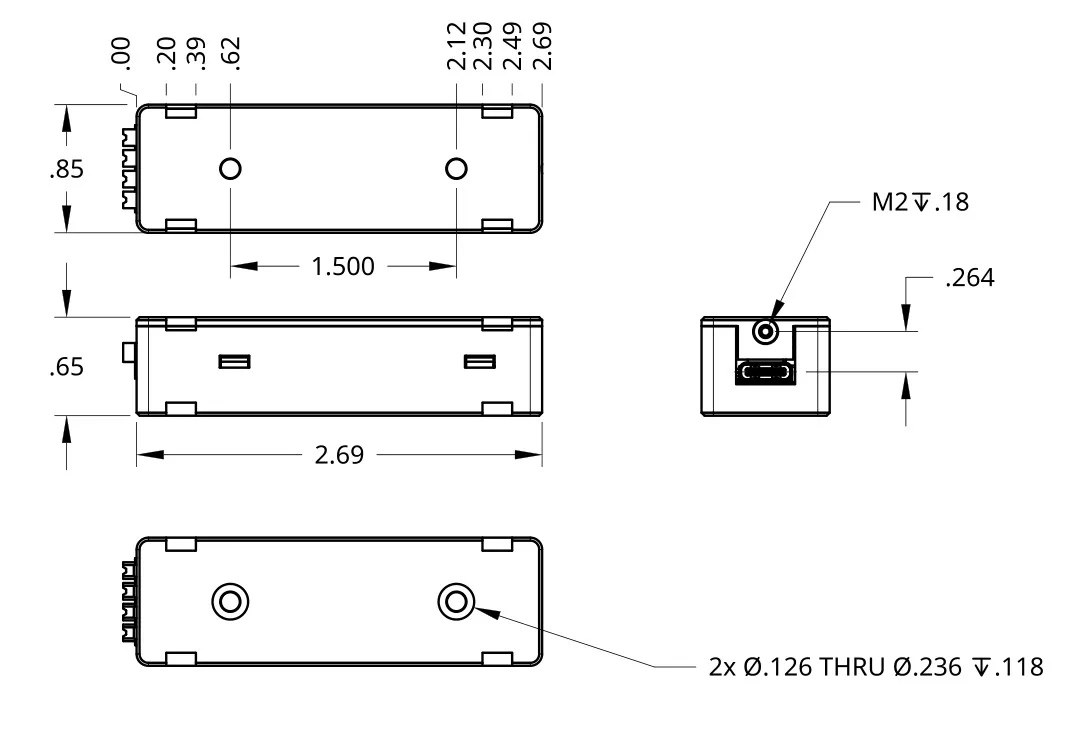

The Zinc-V PCBA measures approximately 2.55 x 0.71 x 0.47” (L x W x H). The cased Zinc-V measures approximately 2.69 x 0.85 x 0.65” (L x W x H). A simplified drawing of the cased unit is shown below.

3D and 2D Drawings

STEP files of the following are available on the product page for the Zinc-V and Zinc-V+:

• Detailed Zinc-V PCBA
• Simplified Zinc-V PCBA
• Simplified Cased Zinc-V
• Internal Zinc-V Vented Orange Pi 5 Case
• External Zinc-V Unvented Orange Pi 5 Case
• External Zinc-V Vented Orange Pi 5 Case

2-D PDF drawings for the Zinc-V PCBA, the Zinc-V with its case, and the Locking USB C-C Cable are available as well on request.
